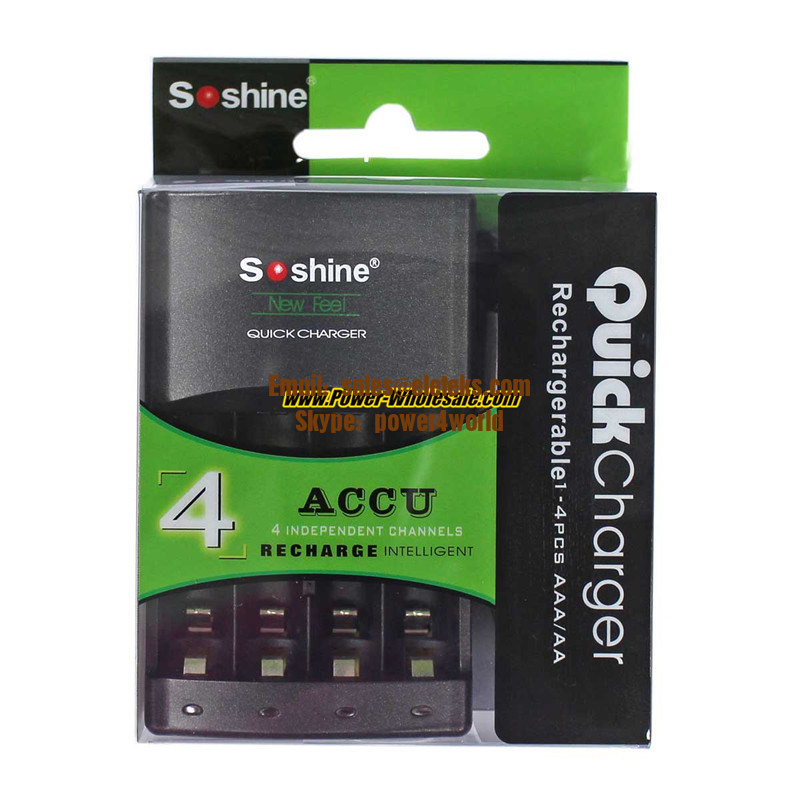

1-4 pcs AAA/AAA Intelligent Battery Charger With Delta V
Charge your digital camera AA and AAA batteries in up one hour. This recharger charges one to four AA or AAA batteries simultaneously. The smart charge cut-off protection stops the process when the battery is full.
Bar Code:6951151520517(AA*4) 6951151520531(Sim)
DC OUT: 1.5V 2000mA
AA*1 AA*2 , 1000mA AA*3 AA*4, 500mA
AAA*1,AAA*2 500mA AAA*3,AAA*4, 250mA
Charge:1-4pcs AA /AAA Ni-MH/Ni-Cd batteries
Housing material: ABS
Packaging type: Clam shell blister
Packaging material: PET
4LED display shows charger condition
Microprocessor controlled auto cut off ( -dv detect)
Timer control, double protection (8 hours cut Off )
Over temperature protection (NTC : 55oC cut Off )
Over current and short circuit protection
Defective and bad, non-Rechargeable battery detection
Universal voltage for worldwide use
4 LED indicate:
Red on ------------------Battery Charging
Blue on --------------- Charge 90%-100% complete
Turn off -----------------Stand by without battery in compartment
Loose connections (replace battery);
Polarity reversed (load the battery in right side)
Low voltage less than 0.2V
Red flash (after 5min) ------Non rechargeable battery like alkaline, primary
Temperature >55 degree
Type of battery
Charging Time (Hours)
1/2 pcs of 900mAh Ni-MH AAA
3/4 pcs of 900mAh Ni-MH AAA
1/2 pcs of 2500mAh Ni-MH AA
3/4 pcs of 2500mAh Ni-MH AA
1/2 pcs of 2700mAh Ni-MH AAA
3/4 pcs of 2700mAh Ni-MH AAA
This chart is for your reference only .The actually time may short than the chart
It is normal for batteries to warm up while charging. They will cool down after they are charged.
Store batteries in a cool dry place at room temperature.
Rechargeable batteries gradually lose power when store. If they are not used for more than one year, charge the battery complete. but cannot use ,the battery may damaged. Replace a new battery.
Not charging all the way?
1. Gently rub battery ends with a clean pencil eraser or cloth to remove any residue
2.Loose connections between battery and charger, replace battery into the battery compartment, turn the battery until LED turn red.
3.Polarity reversed, load the battery into charger in right side until LED turn red.
To avoid personal injury and property damage from, but not limited to, the risk of electric shock or fire:
Charge only rechargeable Ni-MH batteries. Charging any other types of batteries may cause them to leak, rupture or explode.
Do not open battery, dispose of in fire, put in backwards ,mix with used or other battery types or short circuit-may ignite, explode, leak or get hot injury
Use the charger only in dry locations. Keep away from rain, snow or excessive moisture.
Do not operate the charger if damaged
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source
Always unplug the charger from outlet before attempting maintenance or cleaning,
This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.
One year warranty:
This Soshine product is warranted only to the original purchaser upon presentation of proof of purchase, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel. Not applicable to damage caused by normal wear and tear or misuse. Repair or replacement of charger at Soshine option. For more information, please contact your nearest Soshine sales office.
Power-Wholesale Website is committed to providing you with authentic Soshine battery charger. Every charger sold was tested strcitly and of the highest quality.
We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.
We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic battery and charger.
Detail Photos Show:
To know more about Soshine U1 AAA AA battery charger, please check the official Data Sheet with us by following way:
