Soshine 3.7V Li-ion 18650 Protected Battery: 3400mAh with button top

Soshine 3.7V Li-ion 18650 Protected Battery: 3400mAh with button top

  • Nominal Capacity
  • Type
  • Nominal Voltage
  • Size
  • Top Style
    Button Top
  • Protected
  • Capacity
  • Quality
    Original Soshine Products Quality
  • Tips
    Please Use Specific Charger
  • Note
    Do Not Over Charge The Battery
  • Shipment
    DHL, UPS, TNT, FedEx, UTEC, China Post
  • Payment
    Paypal, Western Union, T/T
  • Lead Time
    2-5 Days
  • Warranty
    6 Months
  • Skype
  • Place of Origin
  • Brand Name
  • Certification
    CE, RoHS
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    white paper box or blister kit
  • Delivery Time
    within 2 to 5 days
  • Payment Terms
    Paypal, Western Union, T/T
  • Supply Ability

Soshine 3.7V Li-ion 18650 Protected Battery: 3400mAh with button top

Soshine 3.7V Rechargeable Li-ion 18650 3400mAh Protected Battery with button top


Type Rechargeable Lithium-ion
Model 18650P-3400
Dimension D18.6,H68.3,d7.5
C5mAh 2350
C5mA 2350
Nominal Voltage 3.7V




Nominal 3350mAh

Minimum 3200mAh

when discharged at 0.2C5mA to 2.65V

Charging Conditions 0.2C5mA charge termination control parameters taper current 0.01C5mA at4.2V
Service Life 300cycles(≥60% C5mAh,0.2C discharge)
Weight < 48g
Charging Voltage 4.2±0.03V
Protection Circuit Module

Over Voltage Limit: 4.275 +/- 0.04 V

Under Voltage Limit: 2.65 +/- 0.08 V

Over Current Protection: 7 A~ 8A

Max. Quiescent Drain: 7 µA

Cell protected

PTC (Positive temperature coefficient device)

protect against over temperature and indirectly over current and will automatic reset

CID (Current interrupt device)

pressure valve, will disable the cell permanently if the pressure is to high in the cell (Can be due to over charge).

Ambient Temperature Range

Charging : 0~+45℃

Discharging :-20~+60℃

Storage :-20~+50℃


System: Cylindrical Li-ion Battery


NominalVoltage: 3.7V







Weight approx: 129g (2pcs)


Quality Lithium Ion rechargeable cell

InBuilt Safety Circuitry

Maximumcapacity and reliability



PCB Protected against:
Over charge(4. 275±0.04V)


Overcurrent (short circuit)(7-8A)


Primary technical parameters

1. Discharge RateCharacteristics

2. Discharge Temperature Characteristics

3. Charge Characteristics


Product Advantages:

1) Green product

2) Long standby time

3) 6 months warranty

4) Excellent safety performance

5) Excellent storage performance and low self-discharge rate

6) Short circuit testing passed

7) Overcharge testing passed

8) Over discharge testing passed



  • Audio visual equipment

  • Cellular phones

  • Office automation

  • Notebook PC's

  • PDA's and handy terminals

  • Digital camera,

  • Electric bike battery pack and other battery packs

  • Other devices



  • High Capacity and Stable Discharge Voltage

  • Light weight, small size and high performance

  • Small internal resistance

  • Outstanding Discharge properties and Storage Capacity

  • Pollution free, long cycle life

  • No memory effect

  • Existing stock for short delivery time.

  • Factory price, high quality



1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.


Quality Guarantee:

Power-Wholesale Website is committed to providing you with authentic 18650 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.

  • We only sell authentic Li-Ion batteries.

  • The authentic 18650 batteries are well inspected.



  • We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.

  • We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.

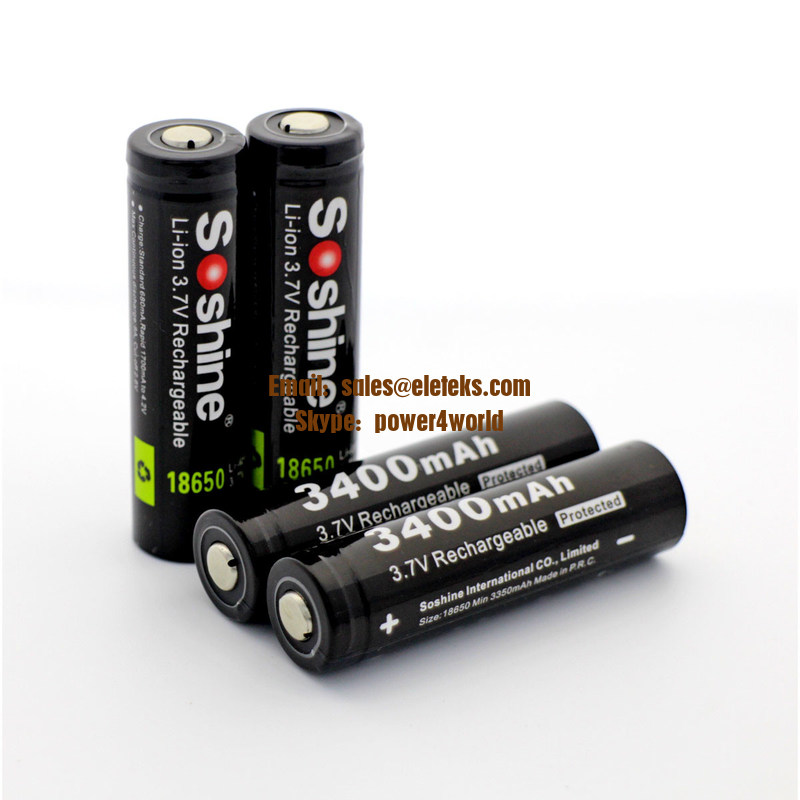

Detail Photos:

Soshine 3.7V Li-ion 18650 Protected Battery: 3400mAh with button top 0

Blister Retail Package:

Soshine 3.7V Li-ion 18650 Protected Battery: 3400mAh with button top 1


To know more about Soshine 3.7V 18650 3400mAh rechargeable battery, please check the official Data Sheet with us by following way:

Skype: power4world
