Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top

Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top

  • Nominal Capacity
    2600mAh
  • Type
    Li-Ion
  • Nominal Voltage
    3.7V
  • Size
    18650
  • Top Style
    Button Top
  • Protected
    Yes
  • Rechargeable
    Yes
  • Cell Model
    Samsung ICR18650-26F
  • Shipment
    DHL, UPS, TNT, FedEx, EMS, UTEC, China Post
  • Payment
    Paypal, Western Union, T/T
  • Lead Time
    Within 2-5 Days
  • Warranty
    6 Months
  • Skype
    Power4world
  • Place of Origin
    South Korea
  • Brand Name
    Samsung
  • Certification
    CE, RoHS
  • Model Number
    PW1156
  • Minimum Order Quantity
    200
  • Price
    3
  • Packaging Details
    white paper box
  • Delivery Time
    within 2 to 5 days
  • Payment Terms
    Paypal, Western Union, T/T
  • Supply Ability
    1000000pcs

Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top

Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected 18650 battery

Specification:
Samsung cell 2600mAh 3.7V With Protected
System: Cylindrical Li-ion Battery
Specification: 18650
Nominal Voltage: 3.7V
Capcity: 2600mAh

Fetures:
Quality Lithium-Ion rechargeable battery cell
Original Imported Samsung ICR18650-26F Cell with Protected Battery
In Built Safety Circuitry
Maximum Capacity and Reliability
Positive Nipple

Dimension:
Diameter-D-18.5(+/- 0.5mm)
Height-H-65.5(+/- 0.5mm)
Diameter-d-5.0(+/- 0.5mm)
Height-h-1.5(+/- 0.5mm)

PCB Protected against:
Over charge
Over discharge
Over current (short circuit)



Nominal Specifications:

Nominal Capacity 2600mAh (0.2C, 2.75V discharge)
Minimum Capacity 2550mAh(0.2C, 2.75V discharge)
Charging Voltage 4.2 ±0.05 V
Nominal Voltage 3.7V
Charging Method CC-CV
(constant voltage with limited current)
Charging Current Standard charge: 1300mA
Rapid charge : 2600mA
Charging Time Standard charge : 3hours
Rapid charge : 2.5hours
Max. Charge Current 2600mA(ambient temperature 25℃)
Max. Discharge Current 5200mA(ambient temperature 25℃)
Discharge Cut-off Voltage 2.75V
Cell Weight 47.0g max
Cell Dimension Height : 65.00mm max
Diameter : 18.40mm max
Operating Temperature Charge : 0 to 45℃
Discharge: -20 to 60℃
Storage Temperature 1 year : -20~25℃(1*)
3 months : -20~45℃(1*)
1 month : -20~60℃(1*)

Product Advantages:
1) Green product
2) Long standby time
3) 6 months warranty
4) Excellent safety performance
5) Excellent storage performance and low self-discharge rate
6) Short circuit testing passed
7) Overcharge testing passed
8) Over discharge testing passed

Major Application:
1) Portable equipment: Laptop, camcorder, PDA, digital camera, portable DVD, led flashlight torch etc.
2) Military equipment: IR telescope
3) Medical devices
4) Power tools

Safety Precaution:
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway

Features:

  • High Capacity and Stable Discharge Voltage

  • Light weight, small size and high performance

  • Small internal resistance

  • Outstanding Discharge properties and Storage Capacity

  • Pollution free, long cycle life

  • No memory effect

  • Existing stock for short delivery time.

  • Factory price, high quality


Cautions:

1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.



Quality Guarantee:
www.eleteks.com is committed to providing you with authentic 18650 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.

  • We only sell authentic Li-Ion batteries.

  • The authentic 18650 batteries are well inspected.



Price:

  • We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.

  • We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.

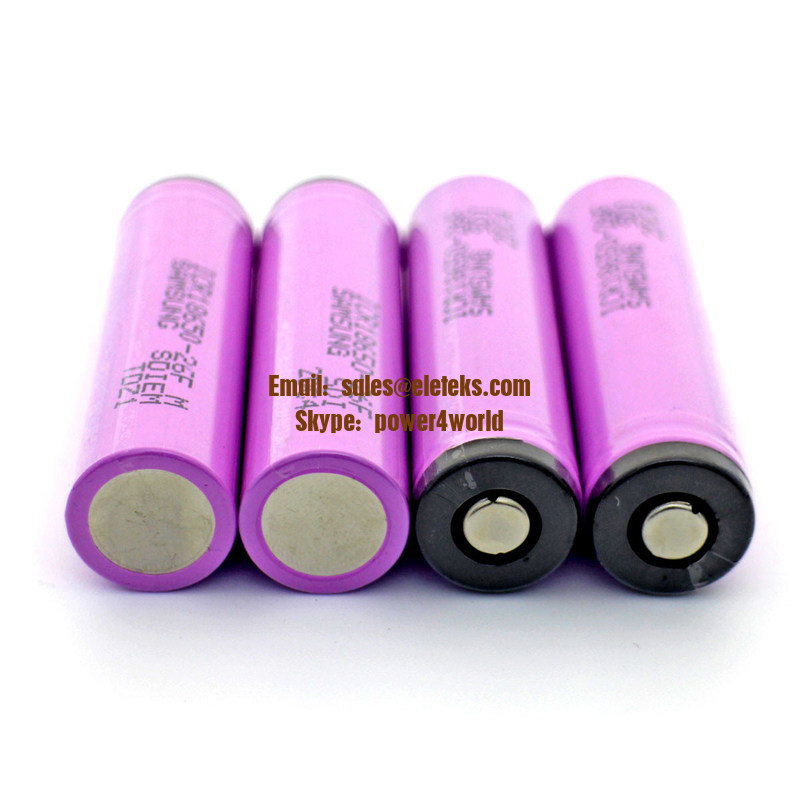

Detail Photos:
Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top 0Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top 1Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top 2Samsung ICR18650-26F 18650 2600mAh Li-ion Battery with Protection, Samsung 2600mAh protected battery with button top 3

To know more about Samsung ICR18650-26F 2600mAh rechargeable battery with protection, please check the official Data Sheet with us by following way:
