Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods

Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods

  • Top Style
    Flat Top
  • Protected
    NO
  • Rechargealbe
    Yes
  • Model
    US18650VTC5
  • Color
    Green
  • Voltage
    3.7V
  • Capacity
    2600mAh
  • Discharge
    30A
  • Quality
    100% Original
  • Size
    18650
  • Tips
    Please Use Specific Chargers
  • Shipment
    DHL, UPS, TNT, FedEx, UTEC, EMS, China Post
  • Payment
    Paypal, Western Union, T/T
  • Lead Time
    Within 2-5 Days
  • Warranty
    6 Months
  • Skype
    Power4world
  • Place of Origin
    Japan
  • Brand Name
    Sony
  • Certification
    CE, RoHS
  • Model Number
    PW1025
  • Minimum Order Quantity
    200
  • Price
    3.36
  • Packaging Details
    white paper box
  • Delivery Time
    within 2 to 5 days
  • Payment Terms
    Paypal, Western Union, T/T
  • Supply Ability
    1000000pcs

Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods

Sony US18650VTC5 2600mah Sony VTC5 30A discharge 3.7V li-ion power battery, excellent for ecig mechanical mods



Nominal Specifications:

Nominal Capacity
(0.2C discharge)
2600mAh
9.36Wh
5.92Wh
average capacity 3.60V (average discharge voltage) at room temperature,2.0V cut off
Rated Capacity
(0.2C discharge)
2500mAh
9.00Wh
minimum capacity at room temperature,2.0V cut off
Capacity at 1C 2563mAh
9.23Wh
average capacity at room temperature,2.5V cut off
Capacity at 10A 2577mAh
8.80Wh
average capacity at room temperature,2.5V cut off
Nominal Voltage 3.6V
Internal Impedance 13m Ω Typ. measured by AC1kHz
Cycle Performance 70% Min. of Initial capacity at 300 cycles 10A discharge at room temperature,2.5V cut off
Charge Method constant current constant voltage
Charge Up Voltage 4.2 ± 0.05V
Charge Current 2.0A
Charge Time 2.5h
Ambient Temperature 23℃



Product Advantages:

1) Green product

2) Long standby time

3) 6 months warranty

4) Excellent safety performance

5) Excellent storage performance and low self-discharge rate

6) Short circuit testing passed

7) Overcharge testing passed

8) Over discharge testing passed



Applications:

  • Audio visual equipment

  • Cellular phones

  • Office automation

  • Notebook PC's

  • PDA's and handy terminals

  • Digital camera,

  • Electric bike battery pack and other battery packs

  • Other devices



Features:

  • High Capacity and Stable Discharge Voltage

  • Light weight, small size and high performance

  • Small internal resistance

  • Outstanding Discharge properties and Storage Capacity

  • Pollution free, long cycle life

  • No memory effect

  • Existing stock for short delivery time.

  • Factory price, high quality



Cautions:

1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.



Quality Guarantee:

www.eleteks.com is committed to providing you with authentic 18650 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.

  • We only sell authentic Li-Ion batteries.

  • The authentic 18650 batteries are well inspected.

Price:

  • We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.

  • We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.

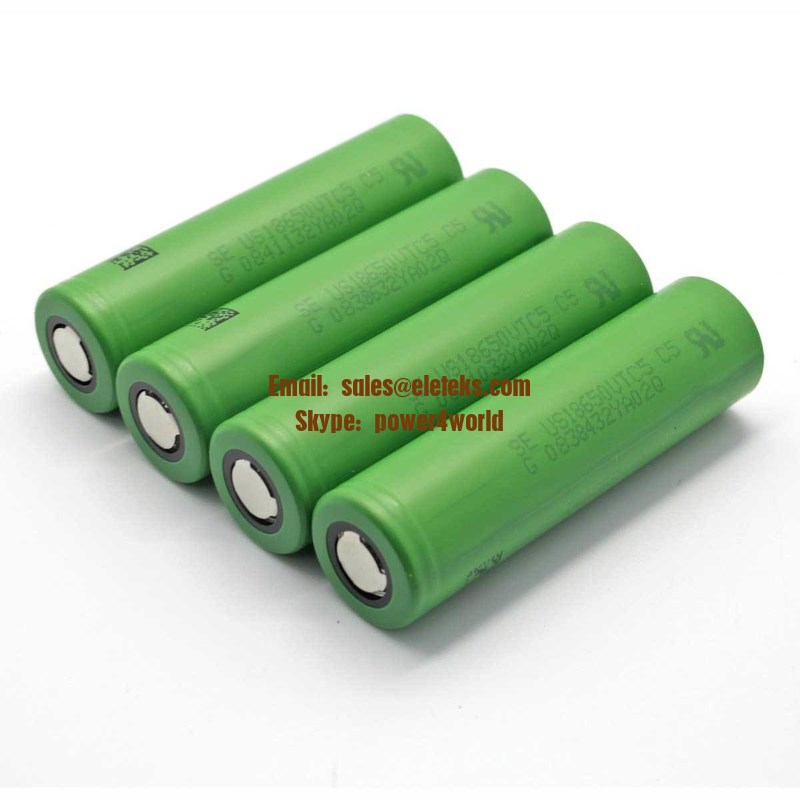

Detail Photos:

Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods 0Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods 1Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods 2Sony US18650VTC5 2600mah Sony VTC5 30A discharge li-ion power cell excellent for ecig mechanical mods 3



To know more about Authentic Sony US18650VTC5 2600mAh 18650 rechargeable battery, please check the official Data Sheet with us by following way:

Skype: power4world

Email: sales@eleteks.com
