Wholesale Samsung ICR18650-22FM 2200mah battery Samsung 18650 22F 3.7V ICR 18650 li-ion rechargeable battery for vape
Nominal Specifications:
Model | Samsung ICR18650-22F / 22FM |
3.1 Nominal Capacity | 2200mAh (0.2C, 2.75V discharge) |
3.2 Minimum Capacity | 2050mAh (1.0C discharge) |
3.3 Charging Voltage | 4.2V±0.05 V |
3.4 Nominal Voltage | 3.6V |
3.5 Charging Method |
CC-CV (constant voltage with limited current) |
3.6 Charging Current |
Standard charge: 1100mA Rapid charge : 2200mA |
3.7 Charging Time |
Standard charge : 3hours Rapid charge : 2.5hours |
3.8 Max. Charge Current | 2200mA |
3.9 Max. Discharge Current |
Continues discharge at 6600 mA (3C), (Continued in a time : Below 10 seconds) |
3.10 Discharge Cut-off Voltage | 2.75V |
3.11 Cell Weight | 44.5g max |
3.12 Cell Dimension |
Diameter(max.) : Φ18.4 mm Height(max.) : 65.0 mm |
3.13 Operating Temperature (cell surface temperature) |
Charge : 0 to 50°C Discharge: -20 to 70°C No safety issue but performance maybe fade BMS parameter Spec: Over-temp detection during discharge is 68°C and release point is 58°C / during charge is 58°C and release point is 48°C. |
Product Advantages:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10. Most safe no explosion no fire
Major Application:
1) Portable equipment: Laptop, camcorder, PDA, digital camera, portable DVD etc.
2) Military equipment: IR telescope
3) Medical devices
4) Power tools
Features:
High Capacity and Stable Discharge Voltage
Light weight, small size and high performance
Small internal resistance
Outstanding Discharge properties and Storage Capacity
Pollution free, long cycle life
No memory effect
Existing stock for short delivery time.
Factory price, high quality
Cautions:
1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.
Quality Guarantee:
www.eleteks.com is committed to providing you with authentic 18650 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.
We only sell authentic Li-Ion batteries.
The authentic 18650 batteries are well inspected.
Price:
We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.
We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.

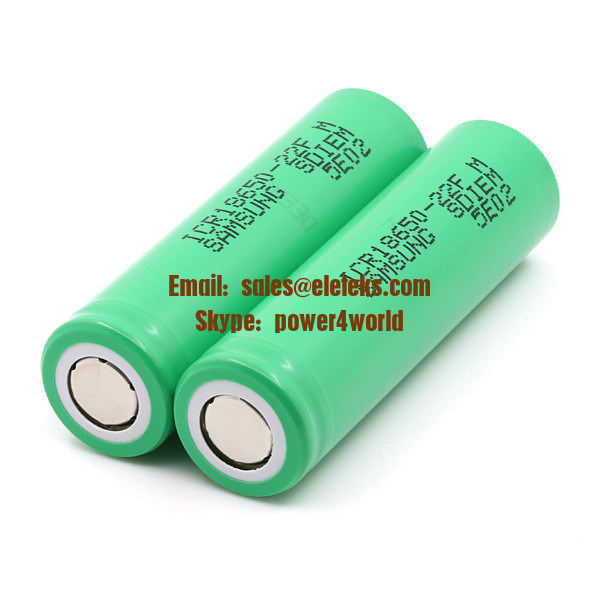

Detail Photos Show:
