Nominal Specifications:
Brand | Panasonic-Sanyo |
Model | NCR20650 |
Size | 20.35x65.3mm |
Rechargeable | Yes |
Rated capacity | 2900mAh at 20°C |
Color | Red |
Nominal voltage | 3.6V |
End-of-charge voltage | 4.20V |
End-of-discharge Voltage | 2.50V |
Typical Capacity | 3100mAh at 25°C |
Min capacity | 2950mAh at 25°C |
Weight | Max: 55.4g |
Internal resistance | Max: 0.04ohm |
Standard Charge | 2065mA,CC CV 100mA cut-off |
Charging Time | 3hours(standard charge) |
Quick Charge Current | 4000mA |
Max Continuous Discharge Current | 30000mA |
Operating Temperature | Charging, 10°C ~ 45°C |
Discharging, -20°C~60°C | |
Storage Temperature | -20°C~50°C |
Storage Humidity | ≤75%RH |
Appearance | Without scratch, distorion, contamination and leakage |
Standard environmental condition | Temperature: 23±5°C |
Humidity :45-75%RH | |
Atmospheric Pressure :86-106KPA |
This is a 20650 cell, one of the new formats for LiIon, NOT a 26650. It is 20mm in diameter and 65mm long. It is another of the larger-than-18650 size cells available along with 26650’s, 20700’s and 21700’s
This cell performs as well, or a little better than, the Ampking/EBAT/Efest/iJoy cell but not quite as well as the elusive Sanyo NCR20700A. This cell do not gain any extra capacity but can deliver a lot of current, it is a very good high current cell. Its maximum vaping amps (MVA) limit is 40A, limited by temperature.
The shorter length of this Sanyo 20650 offers mod builders and companies a different option without compromising performance versus the mid-performance 20700’s
IMPORTANT:
This is a 20650 size battery, it's larger than 18650 batteries, please pay attention.
Fully charge before first use.
Never short (connect positive and negative size) battery.
Keep them always in battery case, or any other insulating material.
Never keep this battery together with metal objects (short circuit can happen if you do).
Never carry bare cell in your pocket with keys, change or any other metal objects.
Note:
It is not protected battery.
Li-Ion Batteries may explode if you do not charge or discharge them properly.
Users must have knowledge on how to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs. We are NOT responsible for any damage that is caused by the misuse of Li-Ion Batteries.
Applications:
Audio visual equipment
Cellular phones
Office automation
Notebook PC's
PDA's and handy terminals
Digital camera,
Electric bike battery pack and other battery packs
Other devices
Features:
High Capacity and Stable Discharge Voltage
Light weight, small size and high performance
Small internal resistance
Outstanding Discharge properties and Storage Capacity
Pollution free, long cycle life
No memory effect
Existing stock for short delivery time.
Factory price, high quality
Cautions:
1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.

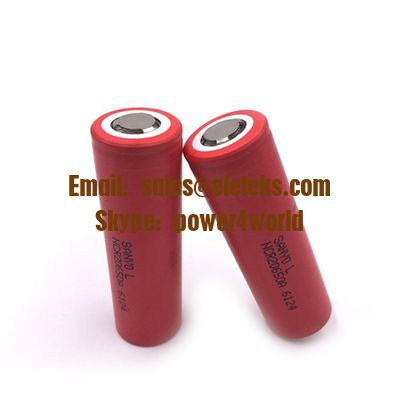

Detail Photos:
To know more about 3.7V Sanyo NCR20650A 3100mAh rechargeable 20650 lithium-ion battery, please check the official Data Sheet with us by following way:
